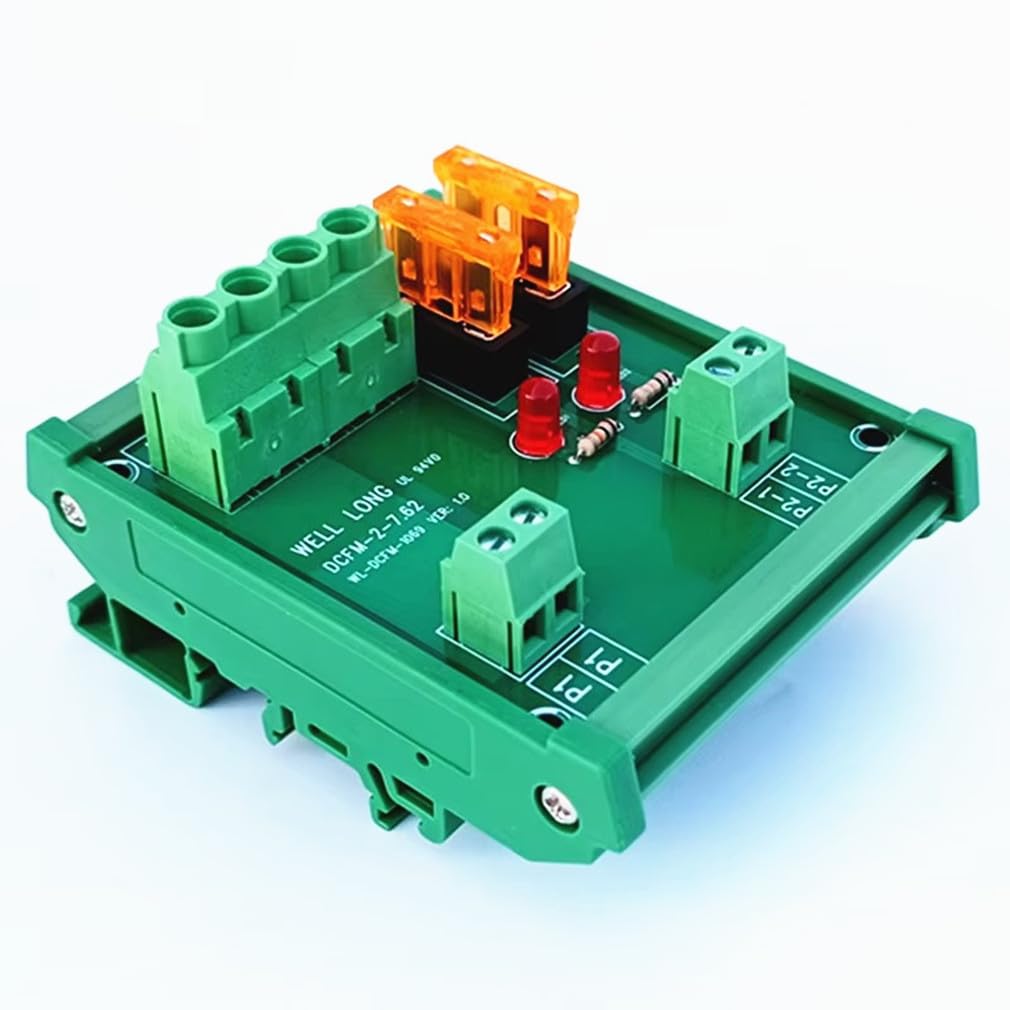

DIN Rail Mount 2 Position Fuse Power Distribution Module Board, for AC/DC 5-32V

The DIN Rail Mount 2 Position Fuse Power Distribution Module Board is a versatile solution for AC/DC power distribution from 5 to 32 volts. This compact module allows you to safely distribute power through two fused positions, making it ideal for industrial automation, control systems, and other applications where reliable power management is crucial. Its DIN rail mounting design ensures easy installation and integration into existing setups. With its robust construction and fuse protection, this module offers a secure and convenient way to distribute power while safeguarding your equipment from potential overcurrent situations. Streamline your power distribution needs with this reliable and space-saving solution. DIN Rail Mount 2 Position Fuse Power Distribution Module Board,For AC/DC 5~32V.DIN rail mountable - for width 35 / 32 / 15mm rails.FR-4 fiber glass PCB, dual copper layers.Dimensions:68mm x 87mm x 48mm (W x L x H).Work voltage: AC or DC 5~32V, total current rating 40Amp.CN1 Input terminals: pitch - 7.62mm, current 30A for per position, wire size 26~10 AWG, stripping length 7mm, Metric M3 slotted screw.CN2 P1 output terminals: pitch - 5.08mm/0.2", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw,maximum current 28A for per position.CN3 P2-1 to P2-2 output terminals: pitch - 5.08mm, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw,maximum current 28A for per position.Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp

• Compact Design: This 2-position fuse power distribution module board is designed for DIN rail mounting, providing a space-saving solution.
• Versatile Voltage Range: Compatible with AC/DC power sources ranging from 5V to 32V, making it suitable for various applications.
• Fuse Protection: Equipped with fuse holders, this module offers reliable protection against overcurrent and short-circuit scenarios.
• Easy Installation: With its DIN rail mount design, this module can be quickly and securely installed, ensuring a hassle-free setup.
• Durable Construction: Built with high-quality materials, this power distribution module is designed to withstand demanding industrial environments.
